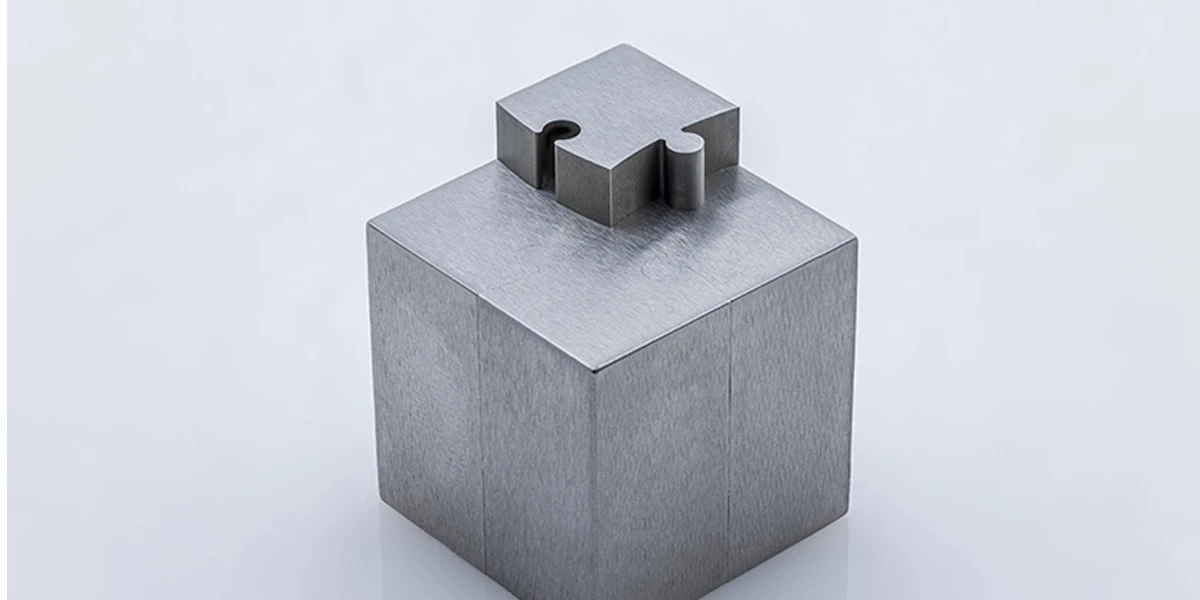

High speed, short cycle times, recyclable wire, and low cost. Suitable for machining external contours and parts requiring less precise precision.

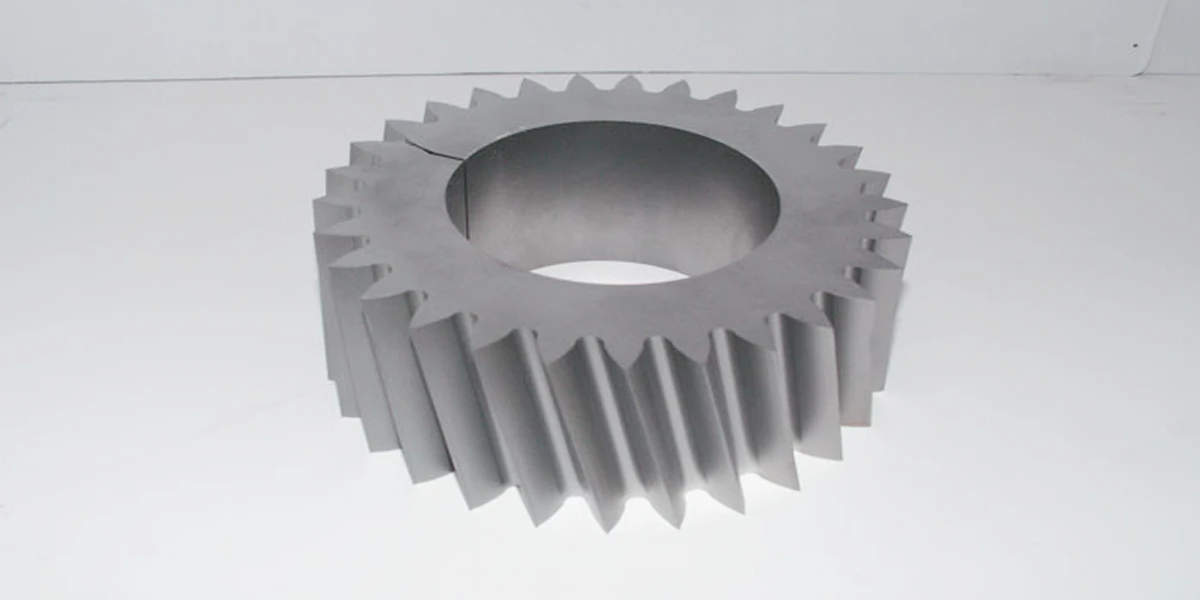

Using disposable copper wire with a minimum diameter of 0.05mm, this method produces finer parts and is particularly suitable for parts requiring high precision.

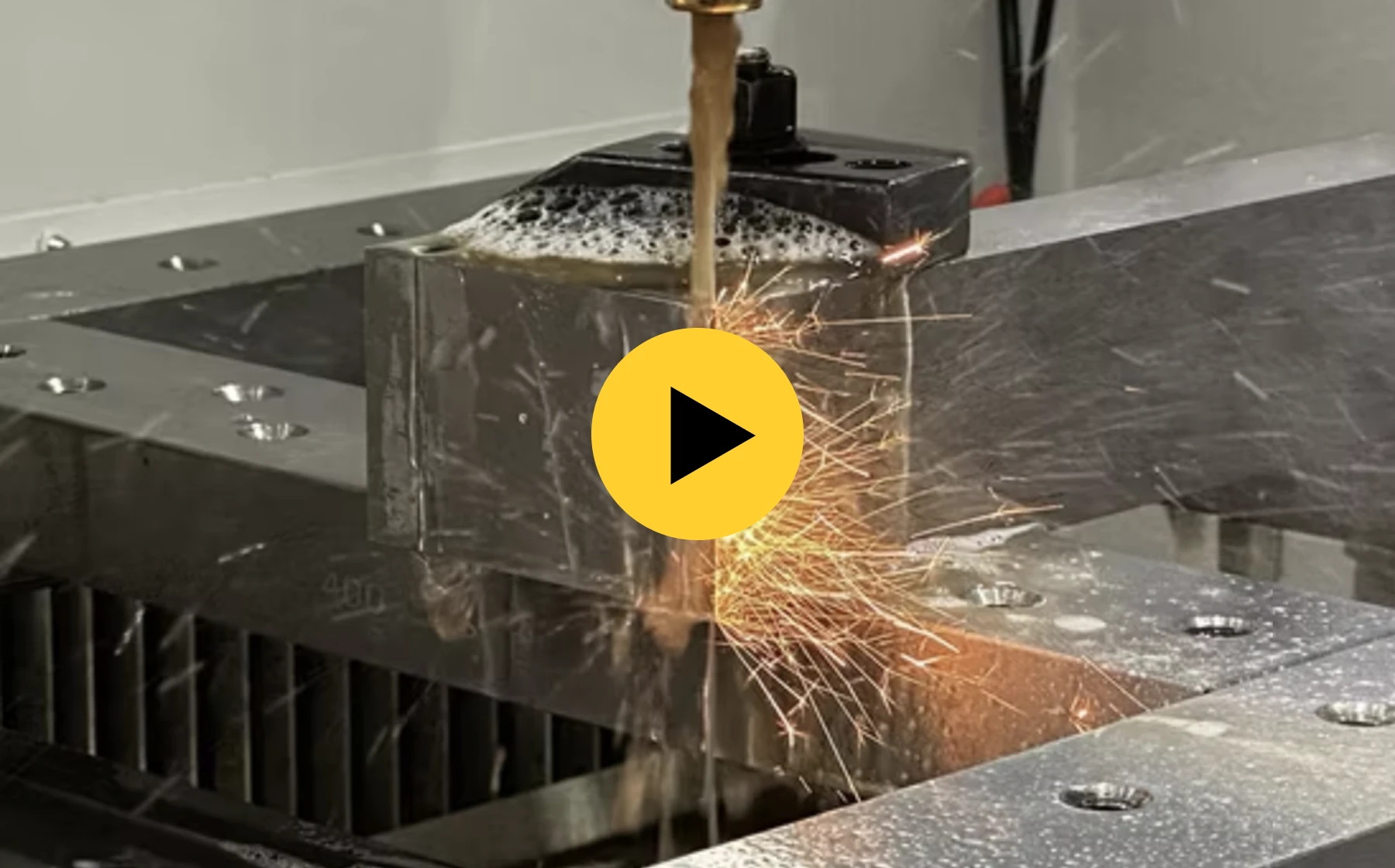

Prepare a conductive workpiece, clean the surface thoroughly to remove oil and impurities, and then mount it on the EDM machine.
A metal wire is placed at a specific location. Both the wire and the workpiece are immersed in a working fluid (usually deionized water). Then apply electrical pressure.
When a pre-set CNC program is activated, the EDM machine moves the charged wire to cut the workpiece. The entire process is immersed in the working fluid. Once the cut is complete, the finished metal part is created.

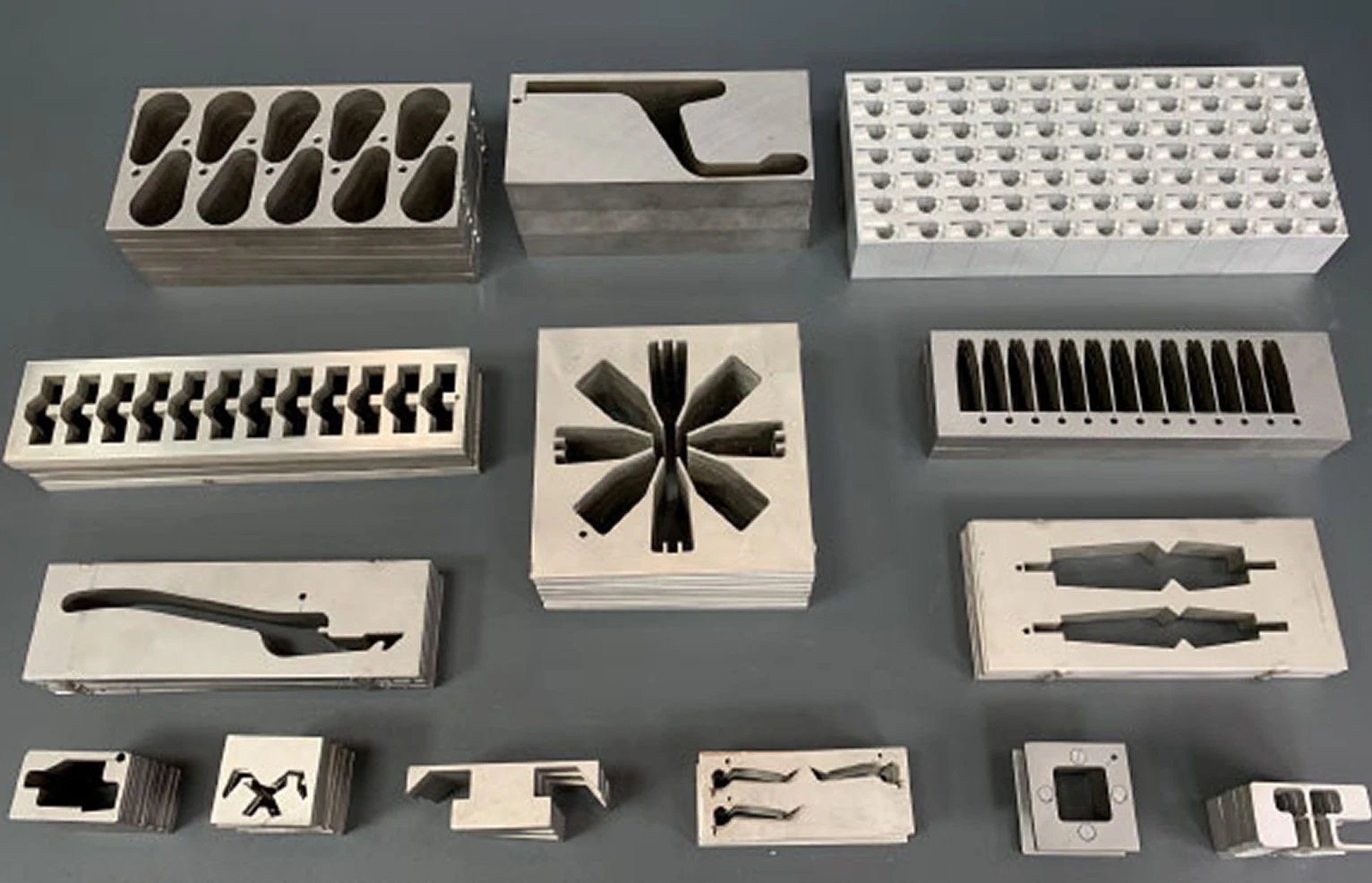

wire EDM has many amazing advantages that are difficult to obtain with other CNC machining methods. For example
Wire EDM cutting has high precision, sometimes reaching micron level, and can be used to complete complex geometric shapes that are difficult to achieve with other machining methods. This is especially important for parts in some special industries.
As long as the material is conductive, wire EDM can complete the cutting, and the cutting process will not cause deformation and stress of the material.
Because EDM uses non-contact cutting, it does not consume materials like traditional cutting, thus eliminating the mechanical stress during the processing and reducing the material loss rate.
| Maximum length | 50-500 mm |
|---|---|
| Maximum width | 30-300 mm |
| Maximum height | 10-150 mm |
| Minimum thickness | 0.5-5.0 mm |
| Tolerance | ±0.005 - ±0.03 |
