Electric motor mounting is a critical aspect of industrial applications that ensures the efficient and safe operation of electric motors. The correct installation of motor mounts not only maximizes performance but also enhances the longevity of the motor unit and the equipment it drives.

This comprehensive guide will explore the various types of motor mounts available, factors to consider when choosing the right mount, and the importance of proper installation and maintenance.

What are the Different Types of Motor Mounts for Electric Motors?

Picture background

Understanding Foot-Mounted Motor Designs

Foot-mounted motor designs are among the most common types of mounts for electric motors. These mounts typically include a robust base that allows the motor to be securely bolted to the floor or a larger frame structure. This style provides stability and support for the motor, especially during operation when vibrations are produced.

Foot-mounted designs are particularly advantageous for larger motors that require a solid foundation to operate effectively. The foot design must accommodate the specific frame size of the electric motor, ensuring that the mounting configuration supports the load and power requirements of the application.

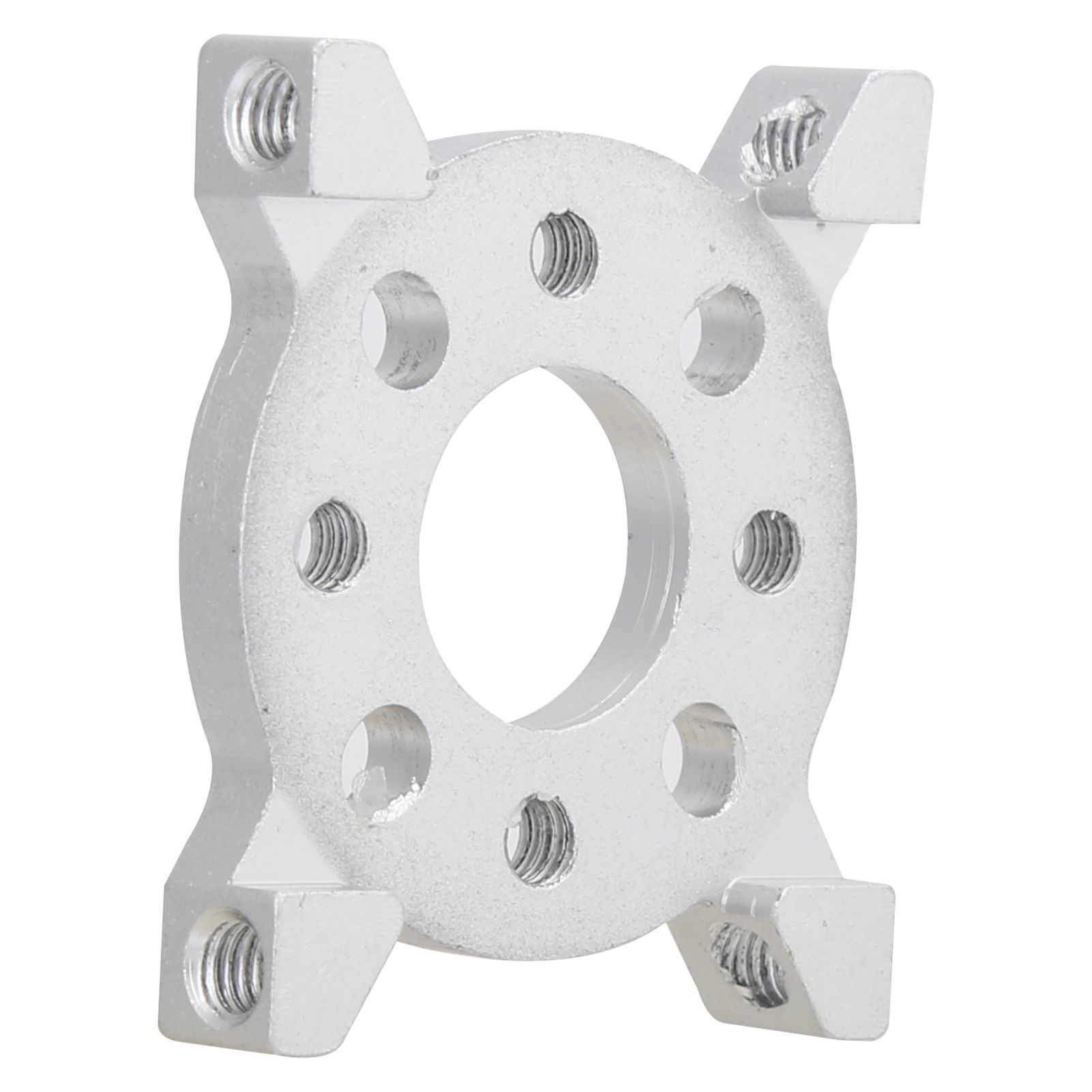

Exploring Small Flange Motor Mounts

Small flange motor mounts are another type of mounting solution that offers a compact and lightweight option for electric motors. These mounts are particularly useful in applications where space is limited, such as in smaller machines or devices.

The small flange design allows for easy installation and removal, providing flexibility in various configurations. Typically, small flange mounts are utilized in low-power applications, such as fans or pumps, where the electric motor needs to be positioned closely to the equipment it drives.

This type of mounting can help minimize the overall size of the assembly while still delivering the required performance.

Advantages of Using Frame-Mounted Electric Motors

Frame-mounted electric motors are designed to be integrated into larger machines or systems, providing a strong and stable foundation for the motor unit. One significant advantage of frame-mounted designs is their ability to distribute loads evenly across the frame, which can enhance the overall durability of both the motor and the equipment being driven.

These mounts allow for greater flexibility in positioning the motor within the machine, which can be vital in optimizing space. Additionally, frame-mounted electric motors typically provide a more efficient connection to the drive system, allowing for better performance and reduced noise levels during operation.

How to Choose the Right Electric Motor Mount for Your Application?

Picture background

Factors to Consider When Specifying Motor Mounts

Choosing the right electric motor mount requires careful consideration of several factors. First, the type of mounting should be specified based on the size and design of the motor, as well as the application’s unique requirements. This includes assessing the load capacity, voltage ratings, and speed requirements of the motor unit.

Additionally, the environmental conditions in which the motor will operate must be taken into account; for instance, if the motor is to be used in a high-temperature environment or in areas with excessive moisture, specific materials and designs must be selected to ensure longevity and reliability.

Assessing Load Requirements for Your Motor Unit

When determining the right motor mount, it’s essential to assess the load requirements of the electric motor unit. This involves understanding the weight and the operational forces that will be exerted on the mount during operation.

Different applications, like pumps or fans, may have varying load characteristics, which must be factored into the selection process. It is crucial to choose a mounting system that can withstand these forces without compromising performance or safety, as an improperly mounted motor can lead to increased wear, noise, and potential failure.

Environmental Considerations for Electric Motor Mounting

Environmental factors play a significant role in the choice of electric motor mounts. For example, if the motor is to be installed in an area with high levels of dust, moisture, or extreme temperatures, the mount must be designed to withstand these conditions.

Selecting materials that are resistant to corrosion and wear will help ensure that the motor mount lasts throughout its operational life. Additionally, it may be necessary to enclose the motor or use specialized equipment to protect it from environmental hazards while still maintaining proper airflow and cooling capabilities.

What is the Importance of Proper Electric Motor Mounting?

Picture background

Impact of Motor Mounting on System Performance

Proper electric motor mounting is crucial for system performance. An adequately mounted motor can significantly reduce vibrations and noise during operation, which can contribute to a smoother running system. Misalignment or insecure mounting can lead to inefficient operation, increased wear on bearings, and ultimately a shortened lifespan of both the motor and the connected equipment.

Ensuring that the motor is mounted according to the manufacturer’s specifications will promote optimal performance and reliability, which is essential in industrial settings where downtime can be costly.

Noise Reduction through Effective Mounting Techniques

Effective motor mounting techniques can also play a pivotal role in noise reduction. By using vibration-dampening materials and ensuring proper alignment, the noise produced by an electric motor during operation can be minimized.

This is particularly important in settings where noise levels must be controlled to meet regulatory standards or to maintain a comfortable working environment. By investing in quality motor mounts and installation methods, businesses can create a quieter and more efficient operational space.

Long-term Benefits of Properly Mounted Electric Motors

Properly mounted electric motors yield long-term benefits that far outweigh the initial investment in quality mounts and installation. A well-mounted motor reduces the likelihood of mechanical failures and the need for frequent maintenance. This not only saves time and money but also extends the operational life of the equipment it drives.

Additionally, efficient motor mounting practices can improve energy consumption rates, leading to lower operational costs over time. By prioritizing proper installation and maintenance, businesses can enhance their productivity and ensure that their systems remain reliable and effective.

How to Install Electric Motor Mounts Effectively?

Picture background

Step-by-Step Guide to Mounting an Electric Motor

Installing electric motor mounts effectively involves a series of steps that ensure the motor is securely and correctly positioned. Begin by selecting the appropriate motor mount type based on the motor’s size and application requirements.

Next, prepare the mounting surface by ensuring it is clean, level, and free from any debris. Align the motor’s mounting holes with those on the mount and use bolts to secure it firmly in place. It is essential to follow the manufacturer’s specifications for torque settings to avoid overtightening, which could cause damage.

Once the motor is mounted, check the alignment with the driven equipment, making any necessary adjustments to ensure smooth operation.

Common Mistakes to Avoid During Installation

There are several common mistakes to avoid during the installation of electric motor mounts. One frequent error is failing to properly align the motor with the driven equipment, which can lead to excessive wear and noise.

Additionally, neglecting to account for thermal expansion can result in misalignment over time. It is also crucial to ensure that all bolts are tightened to the correct specifications, as loose connections can lead to vibrations and mechanical failure.

Lastly, overlooking the environmental conditions can lead to premature wear; therefore, selecting the right materials and designs is essential.

Tools and Equipment Needed for Motor Mount Installation

Having the right tools and equipment is vital for effective motor mount installation. Basic tools typically include wrenches, socket sets, and screwdrivers tailored to the specific bolts used in the mount.

A level is also necessary to ensure that the motor is correctly positioned, while alignment tools may be required for precise adjustments.

Additionally, vibration-dampening pads can be used to minimize noise and vibrations. Depending on the complexity of the installation, specialized equipment may be needed to handle larger motors safely. Preparing a complete toolkit before starting the installation can help streamline the process and ensure that everything proceeds smoothly.

What Maintenance is Required for Electric Motor Mounts?

Picture background

Regular Checks for Wear and Tear on Motor Mounts

Maintenance of electric motor mounts is essential to ensure their longevity and performance. Regular checks for wear and tear should be conducted to identify any signs of degradation, such as cracks or corrosion. It is important to inspect the bolts and connections periodically, as these can loosen over time and affect the stability of the motor.

Additionally, monitoring vibrations can help detect potential issues early, allowing for timely maintenance before any significant damage occurs. Implementing a routine maintenance schedule will help keep the motor mounts in optimal condition.

How to Maintain Proper Alignment of Mounted Motors

Maintaining proper alignment of mounted motors is critical for reducing wear and extending the lifespan of the motor and associated equipment. Regularly check the alignment using appropriate tools, and make adjustments as necessary to ensure that the motor is positioned correctly concerning the driven equipment.

If misalignment is detected, it may be necessary to reposition the motor or adjust the mount. Additionally, keeping the mounting surface clean and free of debris can help maintain alignment and prevent any interference that could lead to operational issues.

When to Replace Your Electric Motor Mounts

Electric motor mounts should be replaced when they show significant signs of wear or damage, such as cracks, rust, or deformation. If the motor experiences excessive vibrations or noise, it may be an indication that the mounts are no longer effective.

Moreover, regular inspections should inform decisions about replacement; if any components are found to be compromised, it is advisable to replace them promptly to avoid further damage to the motor or equipment. Establishing a proactive approach to maintenance and replacement will ensure that electric motors operate efficiently and reliably throughout their service life.

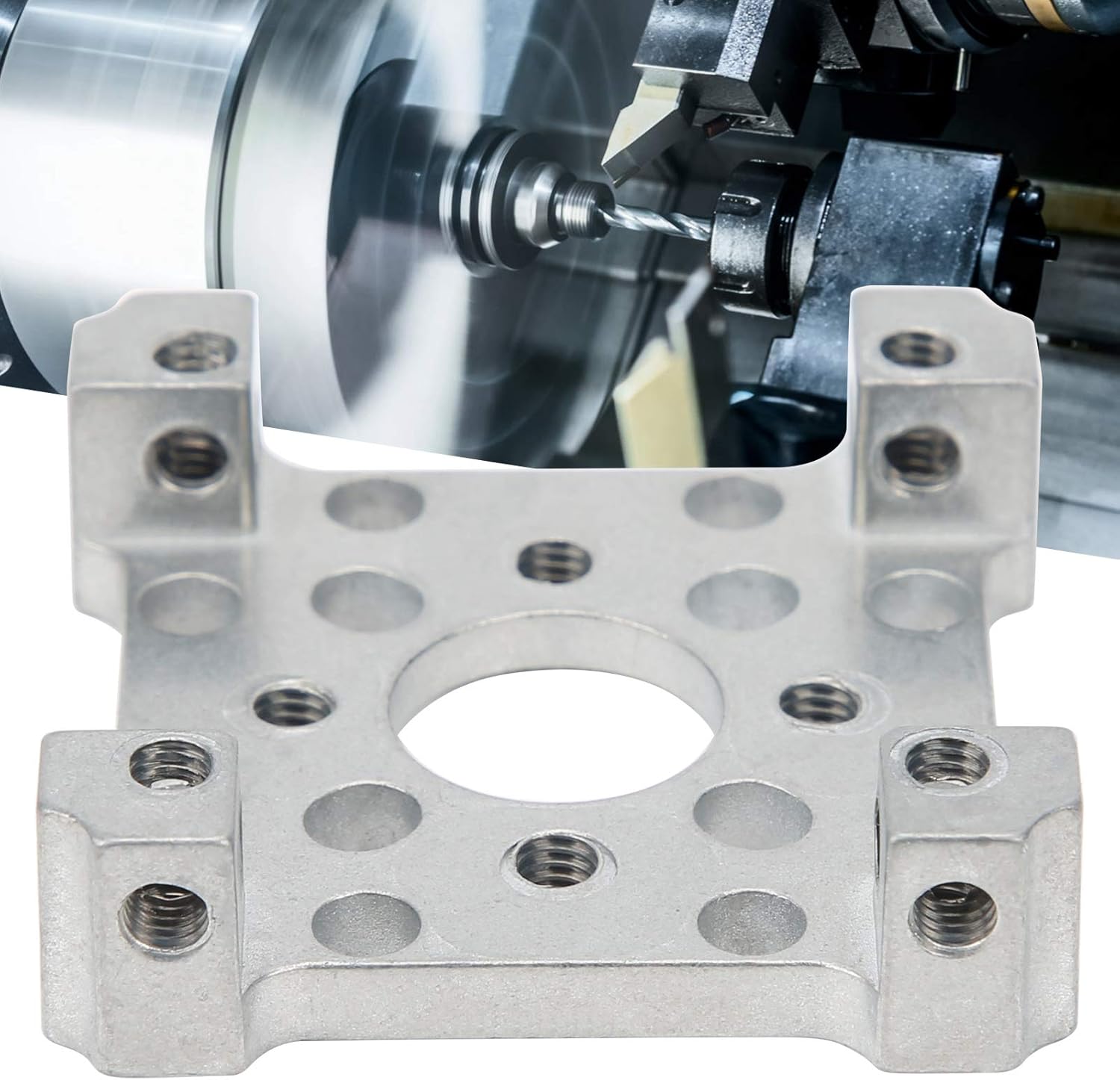

CNC Manufacturing Process for Motor Mounts

cnc machining

The manufacturing of motor mounts often involves CNC (Computer Numerical Control) machining. CNC machining is a process where pre-programmed computer software dictates the movement of factory tools and machinery. This process is used to create highly precise and complex parts such as motor mounts.

Steps in CNC Manufacturing:

1. Design and CAD Modeling: The first step is to design the motor mount using CAD (Computer-Aided Design) software. The design should include all necessary dimensions and tolerances.

2. CAM Programming: Once the design is complete, CAM (Computer-Aided Manufacturing) software is used to generate the CNC program. This program contains the instructions for the CNC machine to follow.

3. Material Selection: The appropriate material for the motor mount is selected based on the application requirements. Common materials include steel, aluminum, and stainless steel.

4. CNC Machining: The CNC machine follows the programmed instructions to cut, drill, and shape the material into the desired motor mount. This process ensures high precision and repeatability.

5. Quality Control: After machining, the motor mount is inspected for any defects and to ensure that it meets the specified dimensions and tolerances.

XMAKE as a CNC Machining Supplier

XMAKE

XMAKE is a leading supplier of CNC machining services, known for its high-quality and precision-engineered parts. Here are some of the key advantages of choosing XMAKE for your CNC machining needs:

  1. Advanced Technology: XMAKE uses state-of-the-art CNC machines that ensure high precision and consistency in every part produced.
  2. Experienced Team: With a team of experienced engineers and machinists, XMAKE can handle complex projects and provide expert advice on material selection and design optimization.
  3. Quality Assurance: XMAKE has a rigorous quality control process that ensures every part meets the highest standards of quality and reliability.
  4. Customization: XMAKE offers customized CNC machining solutions tailored to meet the specific needs of your application.
  5. Fast Turnaround: XMAKE is committed to delivering parts on time, helping you keep your projects on schedule.

Conclusion

Proper electric motor mounting is a critical aspect of ensuring the efficient and reliable operation of industrial equipment. By understanding the different types of motor mounts and following best practices for alignment, vibration isolation, and secure mounting, you can significantly enhance the performance and lifespan of your electric motors.

Additionally, utilizing high-quality CNC machined motor mounts from a reputable supplier like XMAKE can provide the precision and durability needed for demanding industrial applications.

Investing time and resources into proper motor mounting not only prevents costly downtime but also contributes to the overall efficiency and productivity of your industrial operations. By following the guidelines outlined in this comprehensive guide, you can ensure that your electric motors are mounted correctly and perform optimally for years to come.

Read More: Comprehensive Guide to 5 axis cnc machining in 2025 | XMAKE

FAQS

1. How are electric motors mounted?

Electric motors are mounted using brackets, flanges, or baseplates to secure them to machinery. Common methods include foot mounting (bolted to a base), flange mounting (attached via a front or rear flange), or combined foot/flange designs. Proper alignment and vibration isolation are critical for performance and longevity.

2. What are the four basic methods for mounting motors?

The four main motor mounting methods are:

  • Foot-mounted (B3): Bolted to a base.
  • Flange-mounted (B5/B14): Attached via a front flange.
  • Foot-flange combo (B35): Uses both feet and a flange.
  • Face-mounted (B3/B5 variations): Directly secured to equipment without feet.

3. What are electronic motor mounts?

Electronic motor mounts are advanced vibration-damping systems that use sensors and actuators to adjust stiffness in real time, reducing noise and resonance. Common in EVs and precision machinery, they improve efficiency and comfort by dynamically counteracting motor vibrations.

4. What is the difference between F1 and F2 motor mounting?

F1 mounting has a threaded shaft end for direct coupling, while F2 mounting includes an extended shaft with a keyway for belt/pulley systems. F1 is common in direct-drive applications, whereas F2 allows for additional mechanical components like gears or pulleys.
