Custom Cost-Effective FDM 3D Printing

The nozzle diameter directly influences the width of the extruded filament and the level of detail achievable:
Larger Nozzles (e.g., 0.8 mm): Allow for faster print speeds and stronger parts due to the greater extrusion width. However, they reduce the resolution and fine detail of the print.
Smaller Nozzles (e.g., 0.2 mm): Provide higher resolution and finer details, but require slower print speeds and more precise calibration.

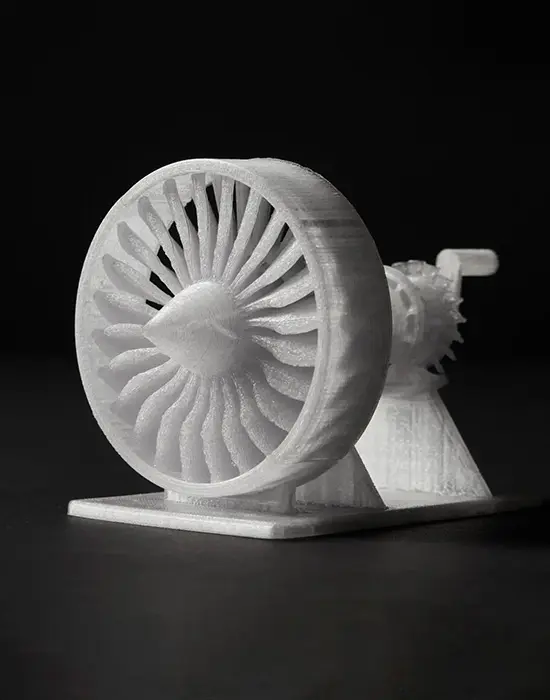

Nozzle Temperature: Typically ranges from 180°C to 250°C depending on the material. For instance, PLA is usually printed at 190-210°C, while ABS requires 220-250°C. Optimal temperature is crucial for ensuring good layer adhesion and preventing issues like stringing or under-extrusion.
Bed Temperature: A heated bed is essential for materials prone to warping. For example, PLA generally requires a bed temperature of 50-60°C, while ABS benefits from a bed temperature of 90-110°C.

Warping occurs when the material cools unevenly, causing the edges to lift from the print bed:
Factors: High print temperatures, rapid cooling, and poor bed adhesion contribute to warping. Materials like ABS are particularly susceptible.
Mitigation: Use a heated bed, apply adhesion aids (e.g., glue sticks or painter’s tape), and print in an enclosed chamber to maintain a consistent temperature. Additionally, printing with a brim or raft can help improve adhesion and reduce warping.

Temperature: Variations can affect the stability of the print, causing issues such as warping or layer separation. A stable temperature environment is ideal.
Humidity: Filaments like PLA and Nylon absorb moisture, leading to defects like bubbling or poor layer adhesion. Proper storage in dry conditions and use of filament dryers can mitigate these issues.

Infill Density: Higher densities (e.g., 50% or more) provide greater strength and rigidity but increase material usage and print time. Lower densities (e.g., 10-20%) reduce material consumption and weight but may sacrifice structural integrity.

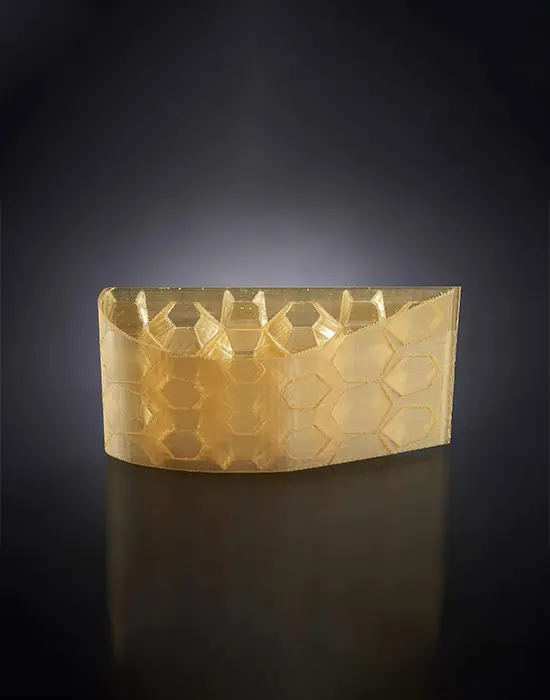

Infill Patterns: Patterns like grid, honeycomb, and cubic offer different trade-offs between strength, weight, and material efficiency. For example, honeycomb provides good strength-to-weight ratio, while grid patterns are simpler and faster to print.

Layer height affects both the print quality and speed:
Lower Layer Heights (e.g., 0.1 mm): Provide smoother surfaces and finer details, enhancing print resolution but increasing print time.
Higher Layer Heights (e.g., 0.3 mm): Reduce print time but can result in a more textured surface and less detail. The choice of layer height should balance the need for detail against the acceptable print time.

Retraction settings control the backward movement of the filament to prevent oozing and stringing during non-print moves:
Retraction Distance: Affects how much filament is pulled back into the nozzle. Too short can lead to stringing; too long can cause clogs or delayed extrusion.
Retraction Speed: Controls how quickly the filament is retracted. Too fast may cause jams, while too slow may not prevent stringing effectively.
